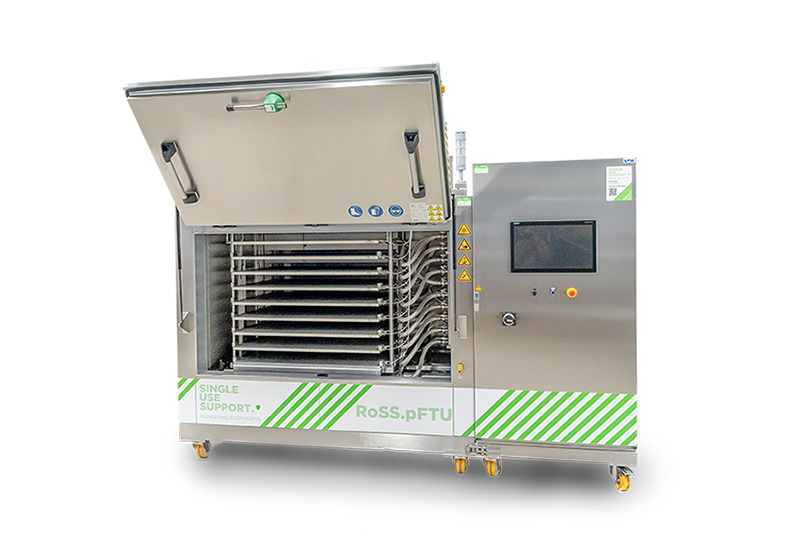

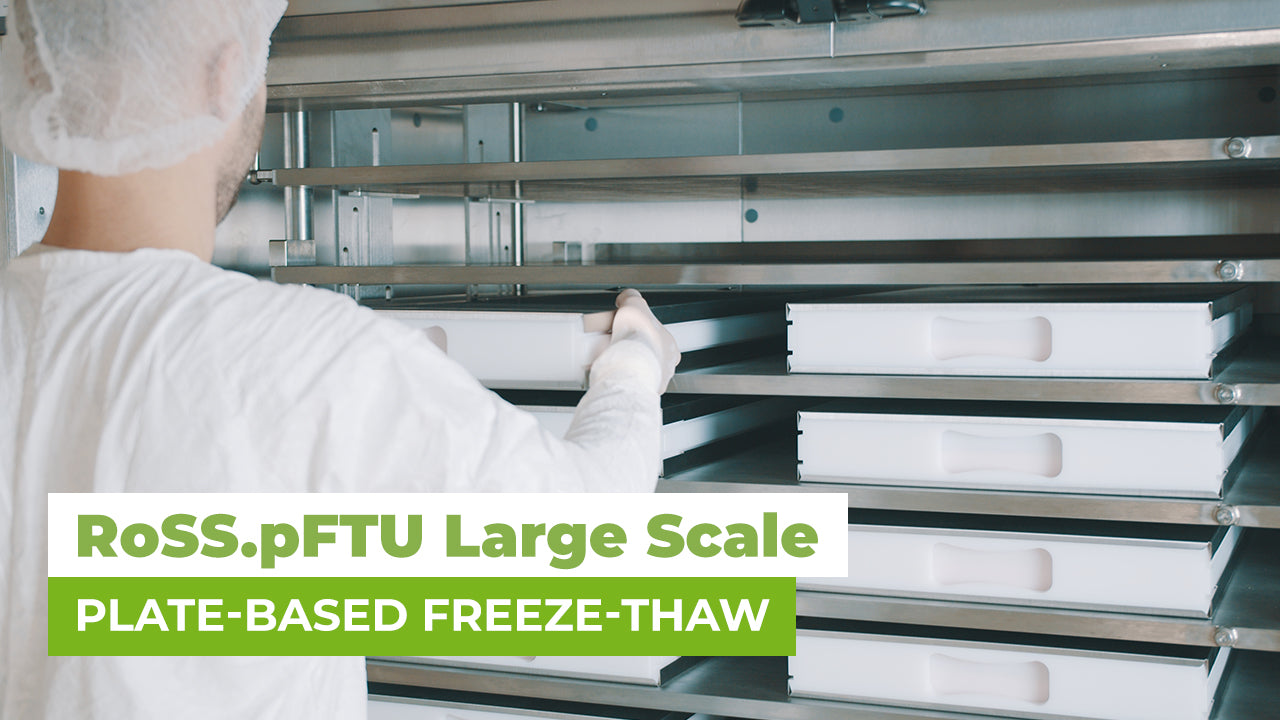

Plate freezer biopharma | RoSS.pFTU Large-Scale

Plate freezer biopharma | RoSS.pFTU Large-Scale

Single Use Support's large scale system is a plate-based freeze-thaw unit for any scale and batch size. The system is compatible with single-use bags and bottles of all sizes and manufacturers and enables a controlled process down to -80°C of up to 400L per batch.

Request a quote
View full details
Green icon of a thermometer on a transparent background demonstrating temperature control
Down to -80°C
Green icon of configuration settings on a transparent background demonstrating controlled rate freezing and thawing in biopharma
Controlled freeze-thaw
Green icon of a water droplet and an arrow on a transparent background demonstrating scalability
Up to 400L+/Batch

Features and benefits of RoSS.pFTU Large Scale

  • Enables controlled freezing down to -80 °C with highest possible speed and accuracy
  • Capacity of up to 400L and more, depending on bag type
  • Single-use bag independent: any bag vendor, any size
  • Hybrid option is suitable for both single-use bags and bottles
  • Best product stability results for mABs and BDS
  • Fully automated and cGMP-compliant
  • Combination with RoSS® shells for optimal protection and handling of single-use bags during freezing

Our customers trust in us:

Reference Logo
Reference Logo
Reference Logo

Advantages of controlled rate plate freezers

  • Graphic of two frozen single-use bags showing different freezing results

  • To demonstrate the effects of cryoconcentration, Naphthol Blue Black was used as a visual marker. The intensity of the blue coloration indicates the concentration of dissolved substances within the frozen solution.

    Slow uncontrolled freezing (A)

    In contrast, bags frozen in a static freezer show uneven solute distribution. Dark blue areas, especially in the lower regions of the bag, highlight significant cryoconcentration.


    Fast controlled freezing (B)

    Bags frozen using our plate-based controlled rate freezer show a uniform distribution of solutes. The result is a consistent, light-blue hue with a distinct white line through the center indicating minimal cryoconcentration.

Downloads

Preview of datasheet for RoSS.pFTU Large Scale freeze-thaw unit by Single Use Support
Datasheet: RoSS.pFTU Large Scale
Preview of datasheet for RoSS.pFTU Large Scale freeze-thaw unit by Single Use Support
Datasheet: RoSS.pFTU Large Scale

Preview of Single Use Support's whitepaper about controlled freezing with RoSS.pFTU
Whitepaper: RoSS.pFTU - Controlled scalable freezing
Preview of Single Use Support's whitepaper about controlled freezing with RoSS.pFTU
Whitepaper: RoSS.pFTU - Controlled scalable freezing

Preview of Single Use Support's case study about scalable freezing and thawing
Study: Scalable freezing & thawing of pharmaceutical bulk drug substance
Preview of Single Use Support's case study about scalable freezing and thawing
Study: Scalable freezing & thawing of pharmaceutical bulk drug substance


Scalable freeze-thaw platforms

  • Single Use Support platforms provide insular solutions for the freeze/thaw processes of each clinical phase. Fully scalable and compatible with all batch sizes and bags from all established manufacturers – you will only require one single system from the lab to blockbuster production. From 10mL up to 50L bags and a batch size of up to 500L and more you can scale-up or down as required.

    More information
  • Graphic of different scale-up stages for freeze-thaw systems used in biopharmaceutical manufacturing.

More solutions

More information

Evolving Methods of Bulk Freezing

Evolving Methods of Bulk Freezing

Unlocking Potential: From outdated CryoVessels to state-of-the-art Plate Freezers The freezing method with multi-use cryogenic containers, also called cryovessels, has been used for decades. The open stainless-steel container is still largely in u...

Michael Eder
Michael Eder
Sustainable Freezing in Biopharma: An Exploration of Natural Gas Usage

Sustainable Freezing in Biopharma: An Exploration of Natural Gas Usage

In the biopharmaceutical sector, the utilization of F-Gases, also known as fluorinated greenhouse gases, is on a decline. However, the need for cryopreservation of drug substances will remain. In order to contribute to a more environmentally frien...

Alexander Fuchs
Alexander Fuchs
Process control during handling of bulk drug substance

Safe handling of bulk drug substances

While one of the main goals of bulk drug substance management is to ensure quality control, safety during manufacturing, storage and transportation are of great importance. Nevertheless, the safe handling of bulk drug substances is a necessary ...

Claus Exenberger
Claus Exenberger
