Single-use tubing assemblies – all parts at a glance

If you are considering switching your operation to single-use tubing, you are not alone: With more and more manufacturers in the pharmaceutical and bio-processing industries replacing their established systems with single-use set-ups, all kinds of single-use components are becoming increasingly important.

In the following, we show you more about the separate components that single-use tubing assemblies and manifolds are made up of and their specific functions.

What are single-use tubing assemblies?

Single-use tubing assemblies are disposable components within pharmaceutical fluid paths, therefore essential for biotech companies and various fields in life sciences that rely on single-use systems in fluid transfer.

Unlike multi-use tubing assemblies, which are often made of stainless steel or glass, single-use tubing assemblies are made of disposable materials – the case for TPE tubings (thermoplastic elastomer tubings) or silicone tubing sets. High purity of these consumables is vital, which is why cGMP-compliant single-use assemblies for the biopharma industry have to pass stringent quality control and validation processes, including extractables profiling.1

To guarantee sterility of the single-use tubing assemblies, many manufacturers produce and package them in ISO class 7 cleanrooms. Additionally, they are usually pre-sterilized, e.g. via gamma irradiation, X-ray irradiation, or autoclave.

Being delivered to biopharma companies, single-use systems are ready to be integrated in various fluid management processes, connecting other elements, such as peristaltic pumps, bioreactors, centrifuges and filtration devices. And as they are designed for one specific application, both the need for laborious in-house cleaning and the risk of cross-contamination, such as with stainless-steel installations, can be reduced.

As the name already suggests, tubings are an integral yet not the only element of single-use tubing assemblies – read on to learn more about their remaining, equally essential components.1

Single-use assemblies by Single Use Support

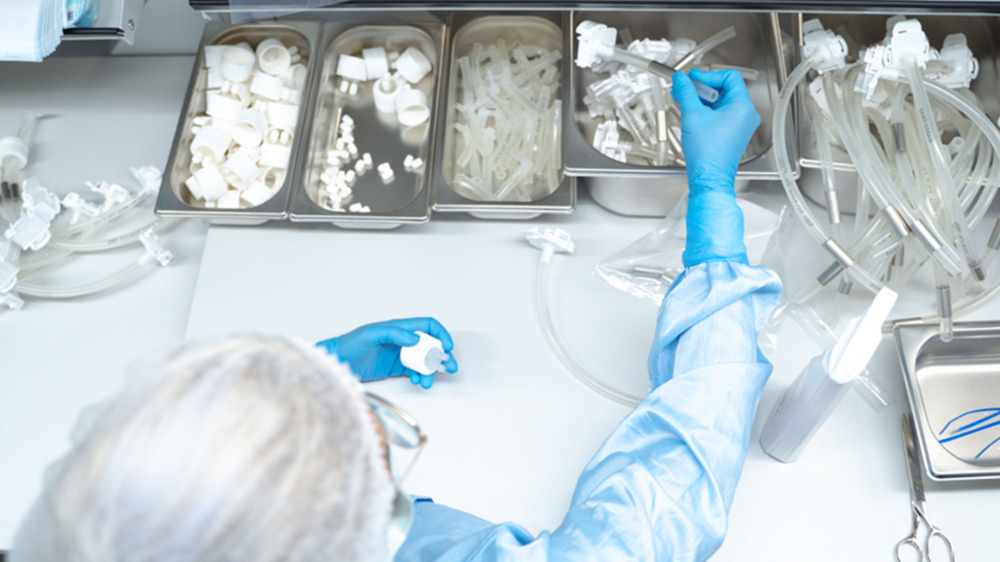

IRIS Single-Use Assmeblies_Production Kufstein-29

IRIS Manifold | Single-Use Assemblies

As an expert in single-use solutions, we have made it our goal to deliver vendor agnostic single-use assemblies manufactured at highest quality standards in ISO 7 cleanrooms and sterilized within shortest lead times. Prevent downtime and ensure an uninterrupted supply chain in compliance with GMP and regulatory requirements with our single-use manifold assemblies using silicone tubing and connectors of your choice.

Single-use Bioprocess Containers

Single-use bioprocess containers (also known as single-use bags) are primary packagings of liquids primarily used for transportation and storage: They are made of strong, durable and temperature-resistant materials, thus offering reliable, sterile protection for liquid drug products, both during shipping and storage.

Single-use bags from several manufacturers are available in a variety of sizes and are compatible with various single-use manifold assembly systems, making them a flexible and scalable solution for the requirements of state-of-the-art biopharmaceutical manufacturing processes.

Bioprocess containers by Single Use Support

Single Use Support provides single-use bioprocess containers in different sizes and films. They are able to withstand cryogenic freezing processes while keeping drug substances safely protected from contamination as well as extractables and leachables.

IRIS Bag

IRIS Single-Use Bioprocess Container

Innovative. Robust. Individual. Single-Use. Make sure your supply chain is uninterrupted. Get your IRIS 2D single-use bioprocess container from Single Use Support in any size with the fastest possible delivery times. Store and ship anything from cell culture samples to large drug substance volumes reliably and on time.

Connectors - sterile and non-sterile

Customized single-use tubing assemblies

As the name suggests, connectors (also known as sterile tubing connectors) are used to connect two separate tubes in order to ensure an uninterrupted pathway. Available in genderless and gendered design, sterile or aseptic single-use connectors provide a secure, simple, and economical connection for high fluid throughput, even in non-sterile environments.

Non-sterile compounding allows manufacturers to customize strength or dosage and remove unwanted inactive ingredients, making it just as significant as sterile compounding. This is why customers can choose between sterile connectors and non-sterile connectors.

Disconnectors

As much as fluid pathways have to be connected reliably, their safe and protected disconnection is equally important in order to meet product quality standards and process compliance.

Maintaining sterility, respectively purity, is critical, and disconnectors provide an easy-to-use, secure method for the sterile disconnection of flexible single-use tubing assemblies.

Filler bottles

Single-use assembly tubing for bottles

Single-use filler bottles (or sometimes called carboys) have long been the go-to solution for filling liquid drug substances, making them the more traditional alternative to single-use bags. Like bags, they are available in a range of sizes to cater for different volumes.

One of the benefits of single-use tubing assembly and manifolds systems is their compatibility with both bags and bottles. This means that, depending on choice and needs, the customer can choose between filler bottles and bags.
Hybrid single-use technologies enable dispensing your drug product into both bottles and bags at the same time.

RoSS.FILL Bottle - learn more!

Datasheet RoSS.FILL Bottle

Datasheet RoSS.FILL Bottle

Filesize: 0.62 MB – Mime-Type: application/pdf

Filter

For purification purposes, disposable single-use filters are an integral part of any biopharmaceutical processing plant. They are available in various micron sizes and materials and are commonly used to help sterilize and deionize water that will later be used within the industry to comply with sterility requirements.

There are various filtering systems, such as, for example, surface or ultrafiltration available from a number of established manufacturers. Again, the flexibility of single-use systems generally allows for the utilization of filters (or brands) of choice.

MANI_X001_00000126-A

Filter Single-Use Assemblies

Clamp

Lightweight and easy-to-handle clamps are specifically designed to meet the needs of busy pharmaceutical and bioprocessing laboratories.

There are different types of clamps, such as pinch clamps, which serve as a shut-off valve to stop the flow of the liquid inside the tube. Other types of clamps can be used to connect different components securely and reliably.

Fittings

Fittings play an essential role in any single-use tubing assembly, and are available in different formats and types, such as:

  • X fittings
  • Y fittings
  • T fittings
  • I fittings
  • Elbow fittings
  • Reducers

While all of the listed fittings are used to aliquote fluids in a predefined manner, reducers have the added task of reducing a tube’s inner diameter so as to allow for a seamless fit with a smaller-size tube. Single-use fittings are necessary to realize basically any design and configuration requirements, making them the real star when it comes to the flexibility of single-use components.

FAQs about single-use tubing

What are single-use tubings?

Single-use tubings refer to consumables made of single-use materials that are used in fluid management processes. For instance, they play an essential role in pharmaceutical fluid management, when sensitive, costly, valuable, and sometimes hazardous substances need to be transferred from one step in the manufacturing and distribution process to another.

What are the benefits of single-use tubings in biopharma?

Single-use tubings bring multiple advantages to biopharmaceutical fluid management. As they are composed of disposable materials and designed for single applications, there is no need for extensive cleaning processes at the manufacturing site, which require considerable amounts of water, energy and chemicals. Instead, single-use tubings typically come pre-sterilized, saving both time and resources in pharmaceutical manufacturing.

What are single-use tubings typically made of?

Single-use tubings are typical made of disposable materials, for example:

  • silicone
  • TPE (thermoplastic elastomers)
  • polyethylene
  • fluoropolymer
  • polyurethane
  1. Making the Best Choices in Single-Use Tubing, https://www.biopharminternational.com/view/making-best-choices-single-use-tubing, Published 2013
